Note: this post is aimed towards admins who run their Moodle installation on a Ubuntu Linux server. As usual, this is not meant to be a definitive list or how-to, but rather an introduction to what a Moodle administrator can do to ensure their installation is running smoothly.

Monitoring tools

The following tools are listed in increasing order of difficulty of use. I have used them all but I have found that unless I load test, the first 3 tools tend to be enough for me. I ran Zabbix for a while but it requires quite a bit of TLC, which I simply don’t have time for – great tool though. If I had to keep only one tool it would be htop.

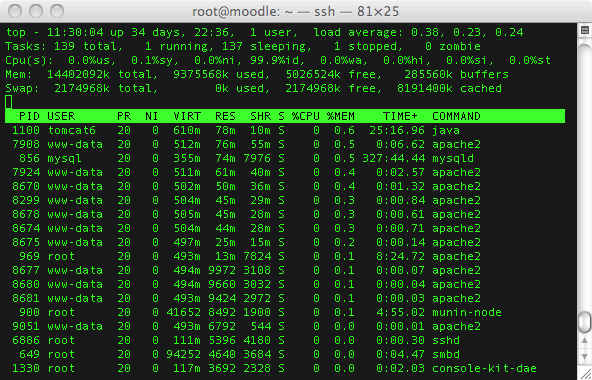

Moodle server monitoring tool 1: top

Moodle monitoring tool - top

What it does

  • By default, the top command lists all processes in decreasing order of amount of CPU they use
  • The top command also shows your memory (RAM) status and your overall load average (CPU usage)
  • Pressing the M key (capital letter) will sort the processes by amount of RAM used (decreasing)
  • All figures are updated in real time, so I usually have it running in a window whenever I load test to see how the server performs under specific loads

Installation

  • Top should come packaged up with your Linux server, you shouldn’t need to install anything for it to work.
  • All you need to do to start it up is type the following command in a terminal window:
    sudo top

If you would like to find out more about all of the options the top command has to offer, read this excellent article.

Moodle server monitoring tool 2: atop

Using atop to monitor Moodle server

What it does

  • atop is very similar to top but gives you access to more data (network, disk, etc.)
  • atop shows usage summaries by all processes e.g. you have access to a summary of all memory, network, CPU (per core) usage

Installation

  • If you want to install atop from a package, simply type
    sudo apt-get install atop
  • All you need to do to start it up is type the following command in a terminal window:
    sudo atop

If you would like to find out more about all of the options the atop command has to offer, read this excellent article.

Moodle server monitoring tool 3: htop

Using htop to monitor Moodle server

What it does

  • htop is very similar to top but allows you to sort data more easily
  • htop also shows CPU & memory usage in a more user-friendly way

Installation

  • If you want to install htop from a package, simply type
    sudo apt-get install htop
  • All you need to do to start it up is type the following command in a terminal window:
    sudo htop

If you would like to find out more about all of the options the htop command has to offer, read this excellent article.

Moodle server monitoring tool 4: Munin

Using Munin to monitor Moodle server

What it does

  • Munin presents your server data in easy to read graphs
  • Munin can monitor pretty much everything on your server, from CPU usage to MySQL slow queries, etc.
  • Munin data is saved in a flat file and historical data can be accessed in the graphs
  • Good support community

Installation

Rather than re-write an install guide for Munin, I have compiled all of the resources I used to get Munin up and running smoothly on my VPS

You might run into some issues (I did) – here is where you can get an easy fix

Moodle server monitoring tool 5: Zabbix

Monitor your Moodle server with Zabbix - IO wait

What it does

  • Zabbix is similar to Munin – it displays server vitals in graphs
  • Zabbix also has the ability to send you email alerts should your server reach critical values e.g. disk usage > 80%
  • You have the ability to create your own alerts, with custom thresholds
  • Zabbix is a full fledged server monitoring solution – you can monitor multiple servers
  • Zabbix is best run on its own server as it is MySQL intensive (every piece of data is stored in a database)

Installation

Monitor your Moodle server with Zabbix - CPU Monitor your Moodle server with Zabbix - bandwidth
